TITAN EAGLE

TITAN eagle is an "High End" CCTV system for clients with the highest demand on performance, quality and reliability.


TITAN eagle includes all functionality of a modern state of the art CCTV system like recording, playing, system monitoring, picture analysing, person tracking, counting, multi-site management, multi-lingual and so on.



TITAN eagle is available in two different versions:

Enterprise Version

Defence Version

Both have the same core software and functionality. The defence version includes more advanced features for military business. TITAN eagle consists of a server and client software. The server software uses a SQL database like ORACLE, PostrgeSQL, Progress and other for storing all configurations and monitoring data.

Compact

  • 50
  • 5
  • 1
  • optional
  • optional
  • optional
  • -
  • -
  • -
  • -
  • -
  • -
  • optional
  • optional
  • optional
  • optional
  • -
  • -

Professional

  • 200
  • 20
  • 20
  • optional
  • optional
  • optional
  • optional
  • optional
  • optional
  • 5 Mio.
  • optional
  • optional

High End

  • unlimited
  • unlimited
  • unlimited
  • unlimited

Monitoring

TITAN eagle uses the concept of on screen display operation, this means, the most important information and commands will be shown in the live video view.

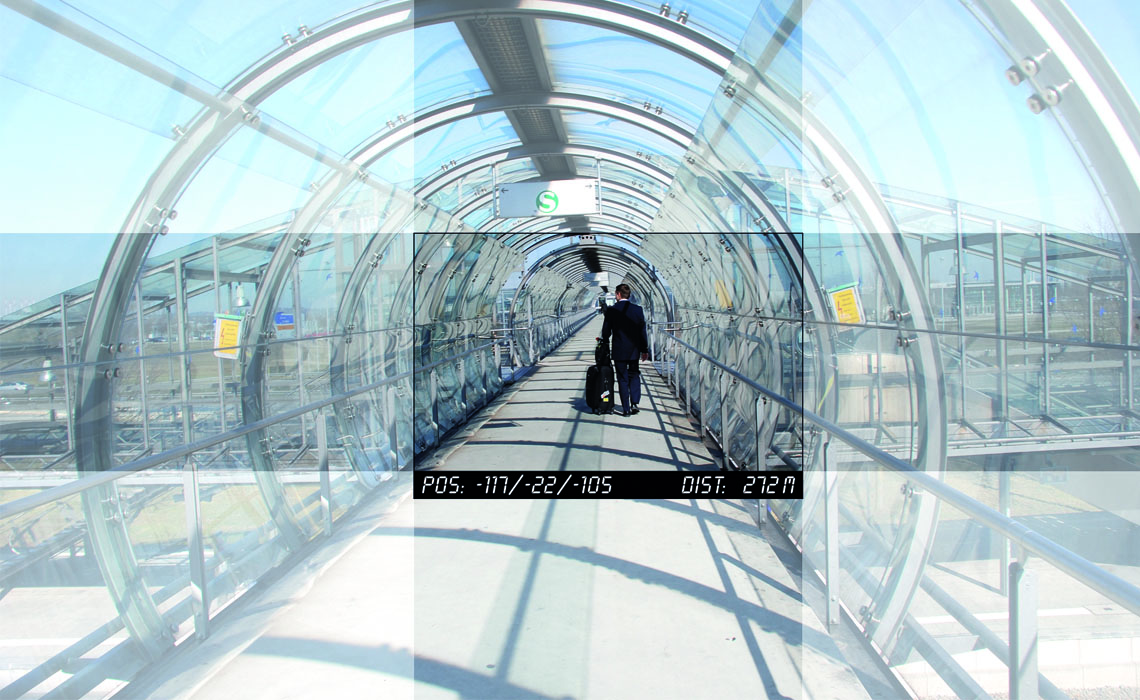

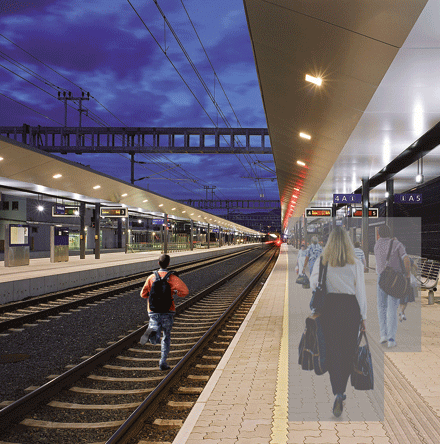

Anonymity


In some cases, it can be necessary that some parts of the screen are not fully visible to the operator. TITAN eagle can overlay a transparent mask, to a static part of the screen or also to a dynamic object, like a person.


The darkness of the mask is free programmable and can also be changed in case of an alarm scenario.


View More

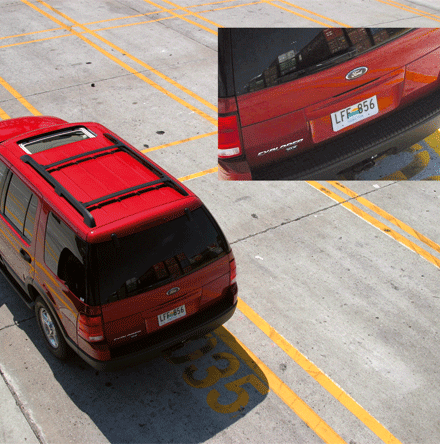

Picture in Picture


With TITAN eagle the operator can easily zoom out a part of the live picture, in a second picture, for better recognizing the picture content.


View More

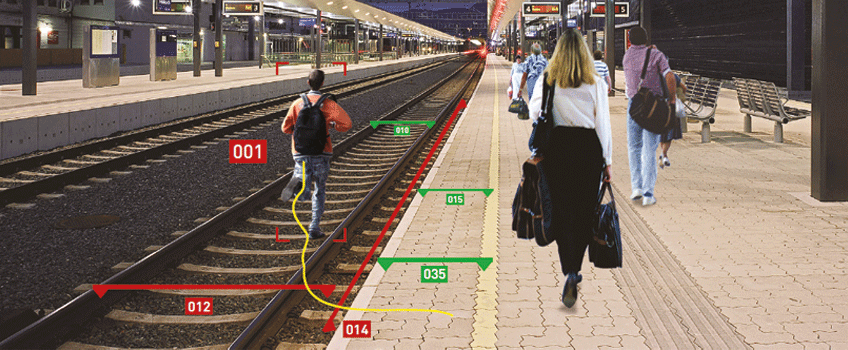

Tripwire

The tripwire sensor is part of the moving object analysing engine and detects objects in a wrong moving direction. Each sensor can be individually programmed in: object size, object detection parameter and activation schedule. Additionally the onscreen display shows the status of the sensor, the last event time and the counter of the tripwire.

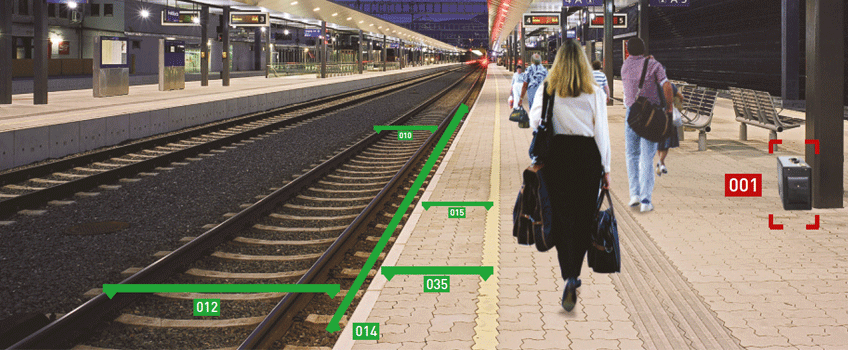

Object Detection

The object detection sensor detects static objects within 10 and 60 seconds according to their programming. Each sensor can also be individually programmed in: object size and activation schedule. With the mouse cursor, the operator can move over the marked object and the software will show an overlay picture containing additional information about the selected object.

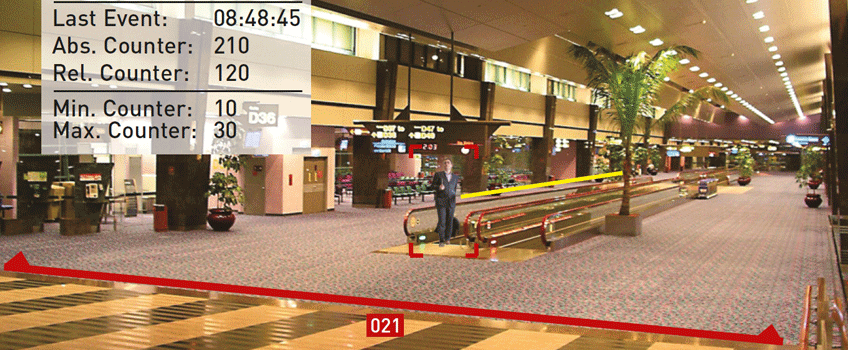

Counting

People counting is an important function for some applications like airports and malls. The software registers all in- and outgoing people in a programmed area. Additionally TITAN eagle can communicate with an access control system to lock entrance readers, in case of overstepping a maximum number of people. See also our interfaces to other security systems.

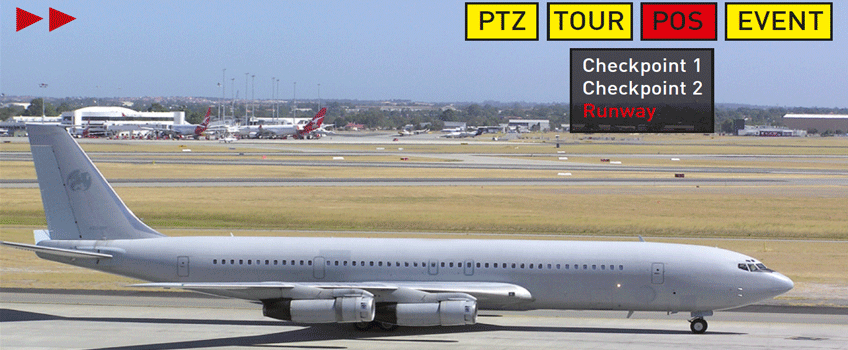

Camera Control

With TITAN eagle all Pan-Tilt-Zoom cameras can be controlled via the live screen overlay. There are control buttons for manually moving, tours and prepositions. Of course all the commands can also be done via a joystick.

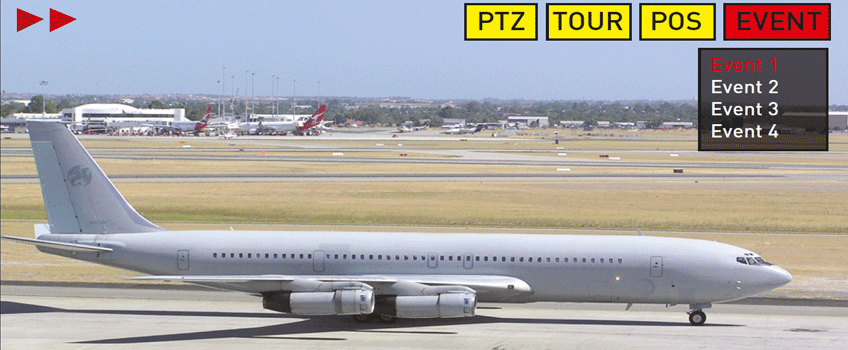

Event Control

Event control is a feature to show the operator the last couple of stored video sequences. There is no need to go into the archive and search time and date. Instead, the operator can click on the live screen, on the interested event and the software shows that sequence in endless mode. All normal functions like zoom and picture in picture are still available.

System Overview

Main Overview


The TITAN eagle architecture is fully IP-based and modular. The smallest available system consists of a computer acting as server and client in one. That design can go up to 50 cameras in H.264 or MPEG4 encoding together with a high speed switch. The next step is the enterprise system, with one or more server and operator stations. On the top level we offer the high availability solution with multi-server, high speed redundant network. All versions can be connected to different subsystems like access, intrusion, fire or programmable logic controller(plc) for integration of contacts.

High Availability Overview


The system architecture of TITAN eagle provides a distributed intelligence structure. That means, the system is fully scalable to nearly infinite amount of cameras and operator stations. Over all server, TITAN eagle distributes one database to store all configurations and live monitoring data. Additionally that design allows storing camera pictures from one camera on more servers via trunk streaming. The main benefit of this feature is maximum availability and security in case of system failure and load balancing in high performance configurations.

Viewing Versions


TITAN eagle uses operator stations with 2 up to 4 monitors. Each of the monitors can be used for video viewing. The first monitor is additionally used as text screen for monitoring and controlling the system. The second monitor is used for administration or for showing the graphic plans if they are available.

Recording Control


Recording control is a main feature of all video systems. The most administrators wish for the recording control to be the most sophisticated. The figure shows the main components with influence on the recording control programming. The software can use each sensor message from TITAN eagle and additionally inform each connected subsystem(intrusion, motion detection, left luggage etc.). All messages can be combined with logic function and different schedules. In the defence version of TITAN eagle the system state (alarm, normal, hijacking etc.) can also be used to change the recording parameter like frame rate, resolution and quantization quality. TITAN eagle adds to each recorded sequence attributes with the recording reason for later analysing and searching in the archive.

Streaming

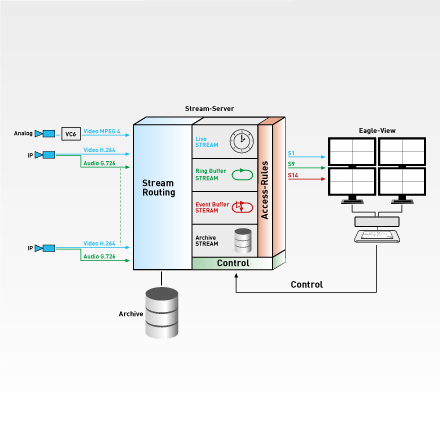

Streaming Technology


TITAN eagle supports in the core system the major CCTV standards MPEG4 and H.264 for streaming and recording. For the analogue cameras TITAN eagle uses our own developed MPEG4 encoder(VC6) for converting the analogue video stream to a MPEG4 stream. In the core system of each stream server there are camera streams for live, delayed, last events and archive available. Each stream has to pass free programmable streaming rules to define who is allowed to get the stream. In the defence version also the system state has influence on the streaming access rules. That means in case of an alarm state (example: hijacking) some operator are not allowed to get the stream of specific cameras and vice versa. These rules can also be changed manually via an action button by an operator.

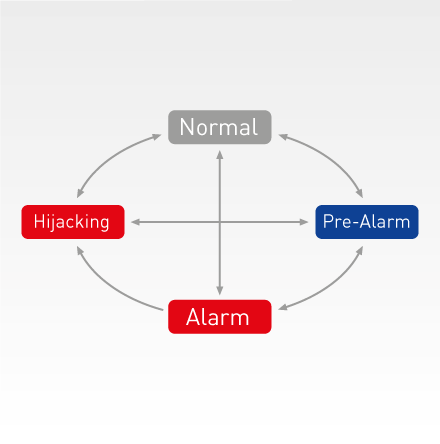

Defence Conditions


A high security system has to operate the system according to their current defense condition. That means the system can automatically adapt their authorization system on the current situation. In our left example the system is programmed with four defense levels. In the normal mode all staff are authorized as programmed. In the hijacking mode some cameras will be automatically invisible to protect the special force operation. Additionally some operator rights can be degraded to a minimal level to reduce false operations.

Camera Technology

Highlights

  • ONVIF Standard Integration
  • Static and Dynamic Configuration
  • Configuration stored in Database
  • Full Featured Camera Integration

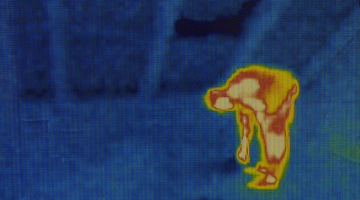

  • Thermal Camera for High End People Tracking

TITAN eagle goes the way for full feature integration of camera models and storing the configuration setups in the system database.

Latest Shots
